Ultra Light Weight. Low Series Resistance. Easy & quick to install. Higher Open Circuit Voltage. Low System Installation cost. Easily mounted with number of options . Maintain Module Integrity &Power maintenance. Superior Low Light & Low sun Angle Performance.
Product Features:
5 Years Material & Workmanship Warranty & 15 Years Power Output Warranty
Mechanical Characteristrics:
| Solar cells per Module / Arrangement | 24 (2 x 12 ) |
| Cell Dimensions | 166 x 83mm |
| Cell Type | Mono-PERC |

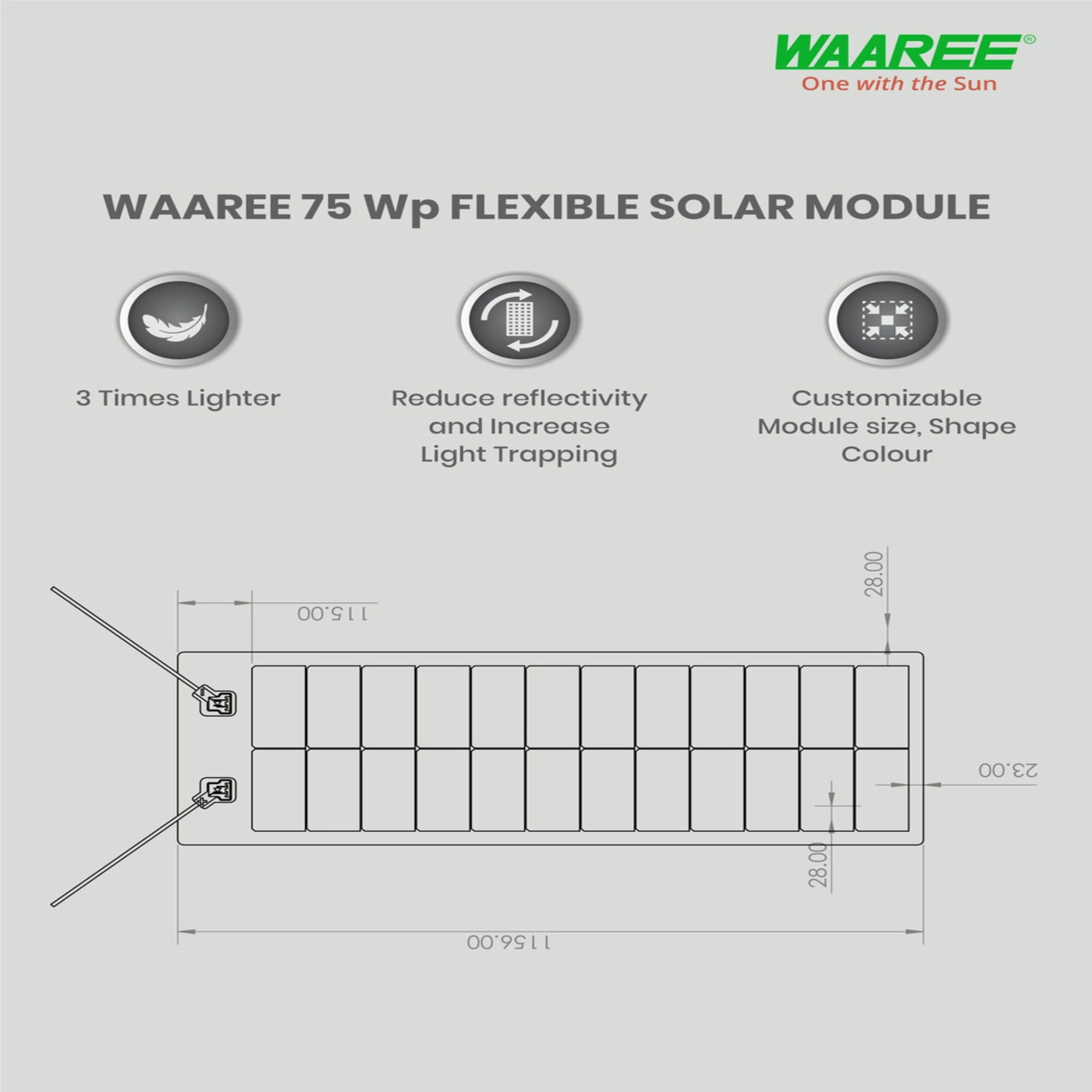

| Module Dimensions (LxWxH) | 1156x390x22mm |
| Weight | 2 ±0. 3 KG |
| Junction Box | IP67 with 3 bypass diode |
| Connector Type | MC4 Compatible |
| Superstrate type (e.g-strengthened glass,tempered glass etc) | ETFE Polyme |
