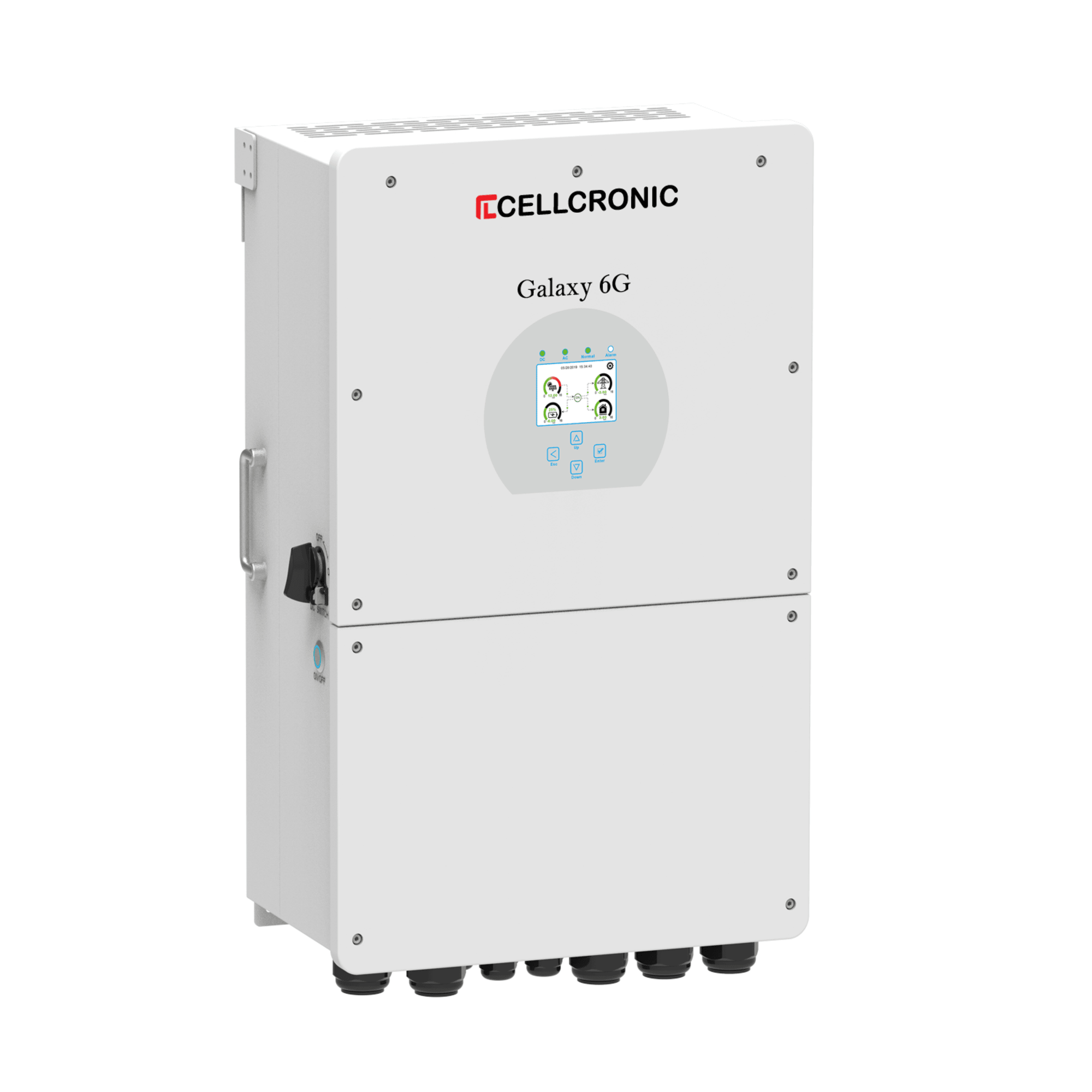

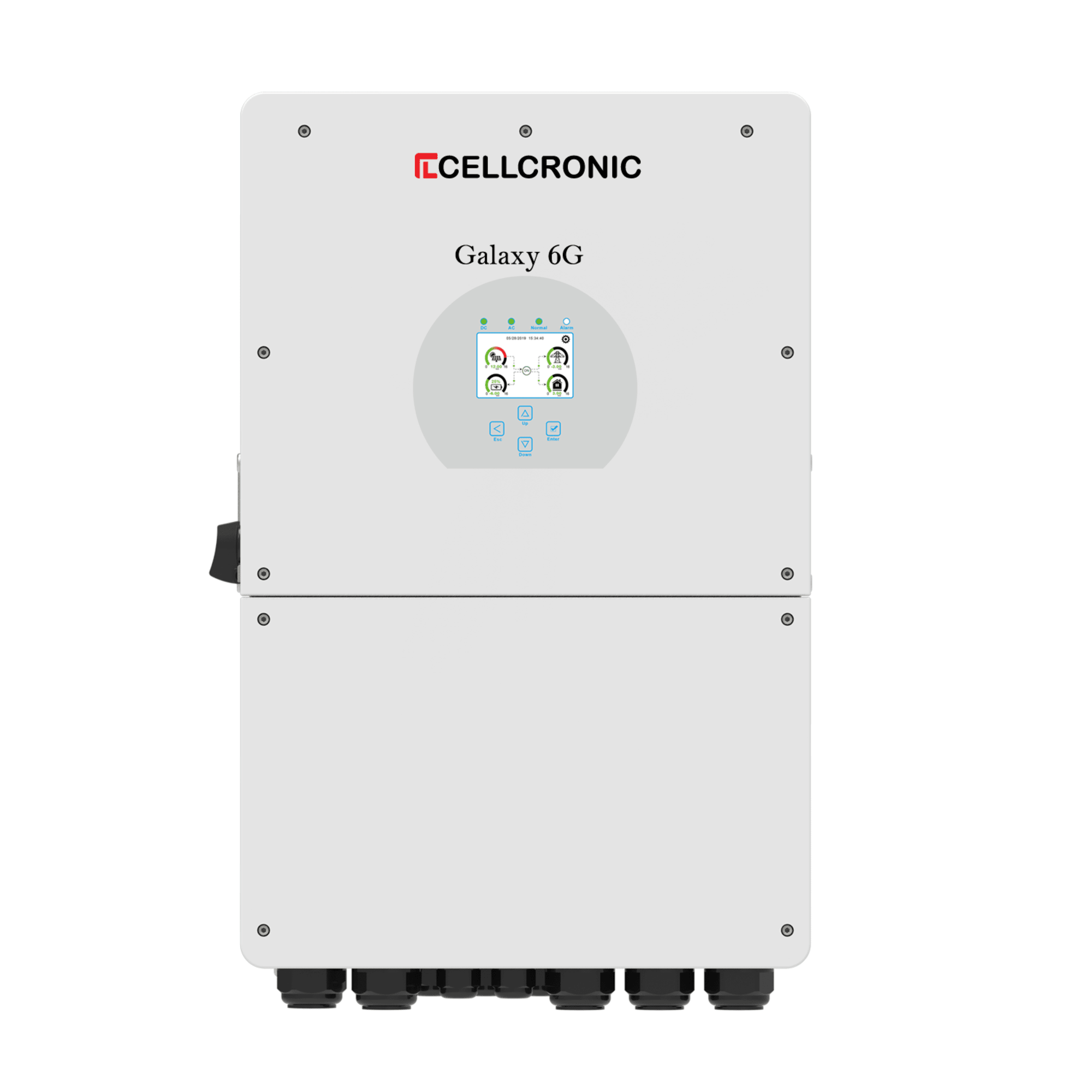

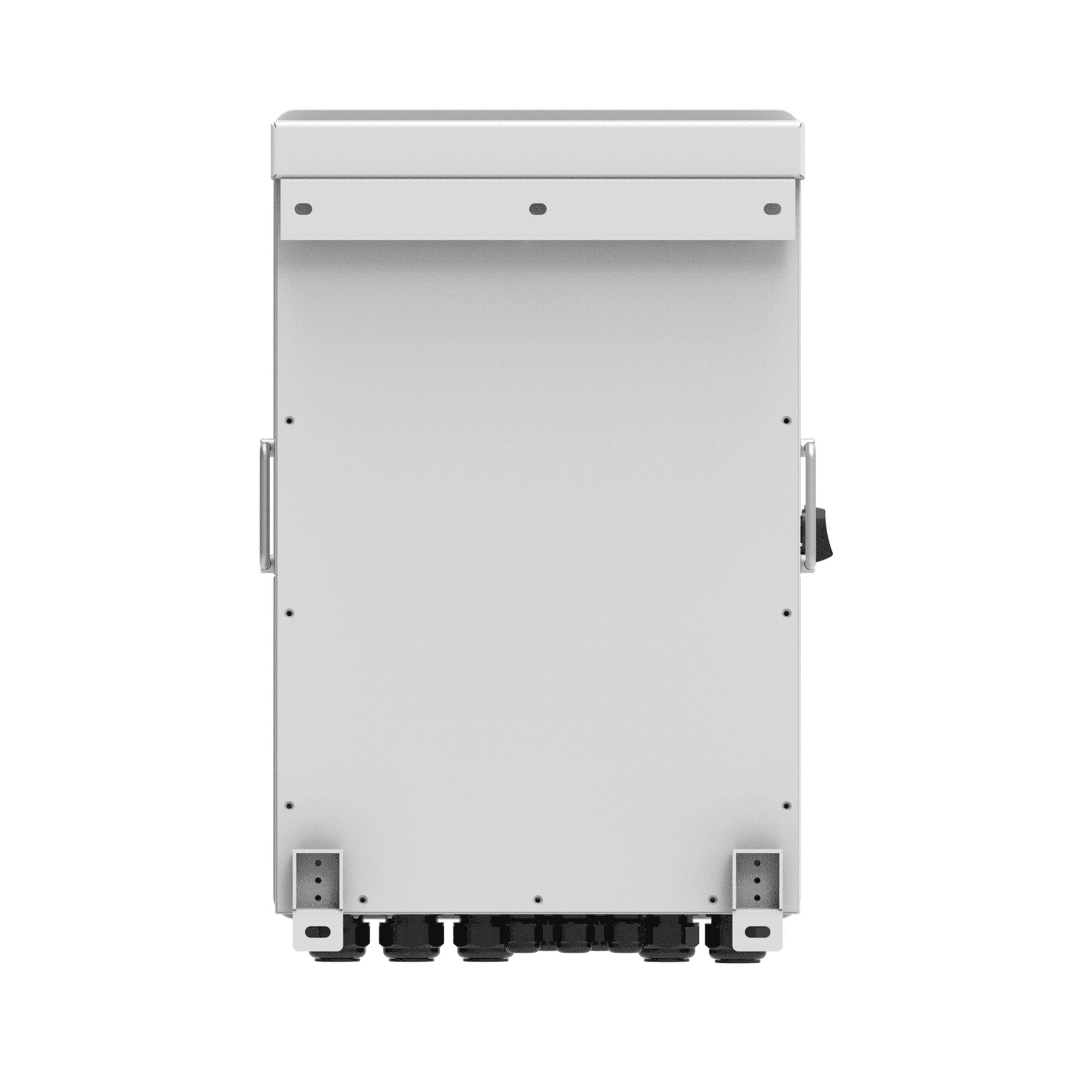

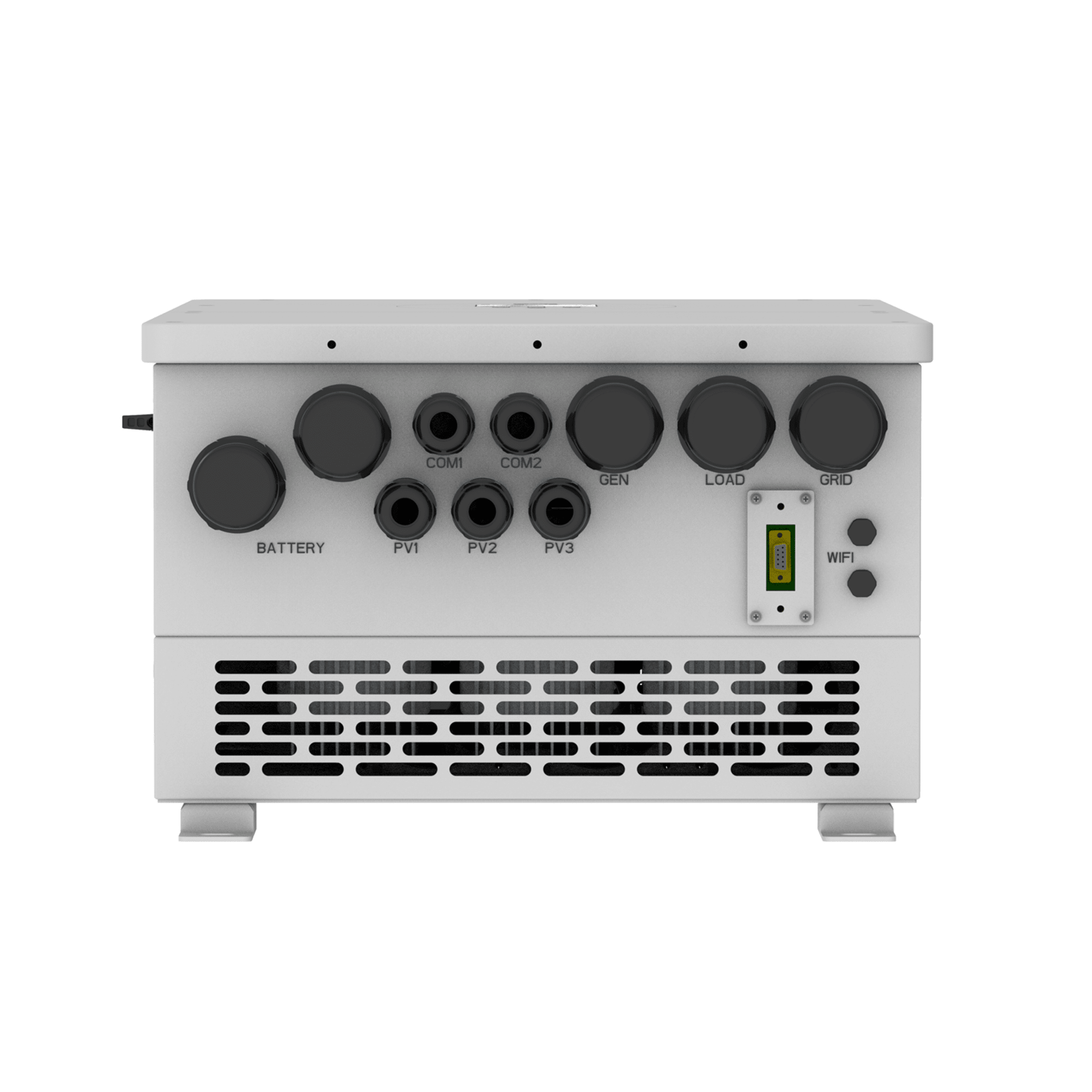

| Model | Galaxy 6G 12kw-48v 3P EU |
| Battery Input Data |
| Battery Type | Lead–acid or Lithium–ion |
| Battery Voltage Range (V) | 40~60V |
| Max. Charging Current (A) | 240A |
| Max. Discharging Current (A) | 240A |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Optional |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| PV STRING INPUT DATA |
| Max. DC Input Power(W) | 15600W |
| PV input Voltage (V) | 450V (140V~800V) |
| MPPT Range (V) | 140V-700V |
| Start-up Voltage (V) | 160V |
| PV input Current (A) | 12.5A+12.5A/12.5A |
| No. of MPPT Trackers | 2 |
| No. of Strings Per MPPT Tracker | 2+1 |
| AC OUTPUT DATA |
| Rated AC Output and UPS Power(W) | 12000W |
| Max. AC Output Power(W) | 13200W |
| Peak Power (off-grid) | 2 times of rated power, 10S |
| AC Output Rated Current(A) | 17.4A |
| Max. AC Current(A) | 19.1A |
| Max. Continuous AC Passthrough(A) | 60A |
| Output Frequency and Voltage | 50/60Hz;230/400Vac (Three Phase) |
| Grid Type | Three Phase |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) |
| EFFICIENCY |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| PROTECTION |
| PV Arc Fault Detection | Integrated(Except European Type) |
| PV Input Lightning Protection | Integrated |
| Anti-island Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Over Current Protection | Integrated |
| Output Shorted Protection | Integrated |
| Output Over Voltage Protection | Integrated |
| Surge Protection | DC Type ll / AC Type ll |
| CERTIFICATION AND STANDARDS |
| Grid Regulation | UL1741, IE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727 |
| SafetyRegulation | IEC62109-1, IEC62109-2 |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B |
| GENERAL DATA |
| Operating Temperature Range(°C) | -25~60°C,>45°C Derating |
| Cooling | Smart Cooling |
| Noise(dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 45 |
| Size (mm) | 656Wx420Hx256D |
| Protection Degree | IP65 |
| Installation Style | Well-mounted |
| Warranty | 5 Years |
