Details
Compatibility 60-cell / 120-half-cell and 72-cell / 144-half-cell modules
Commonly used module pairings 280-465 W
Peak Output Power 366 VA
Continuous Output Power 349 VA
Maximum units per 20 A (L-N) branch circuit 11 (Ph+N)
EN 50530 (EU) weighted efficiency 96.5 %
State-Of-The-Art Monitoring with Enlighten™
Utilizing the Envoy™ communications gateway, the Enlighten™ monitoring service uses advanced powerline communications technology to stay in touch with each microinverter without additional wiring or wireless equipment. System owners can easily monitor their system's performance data from any smartphone with an internet connection.
Smart Grid Ready
Complies with advanced grid support, voltage and frequency ridethrough requirements
Envoy and Internet connection required
Configurable for varying grid profiles.
Disclaimer
You must undertake out the required due diligence with respect to the products you intend to purchase for your proposed installation, including by consulting with a local electrician/ installer accredited by the Clean Energy Council (CEC).
To claim any rebates offered by any regulatory body (including the applicable Clean Energy Regulator), your solar PV system must mandatorily be installed by a CEC accredited installer.
The due diligence per point 1. above is necessary so that you may ensure that: (i) you get the warranty for all components/products purchased according to your requirements; and (ii) the proposed system design the grid application for the proposed installation meet your requirements and comply with applicable local laws.
Further, please note that the products listed on the [Enphase Store] as well as Solar PV systems in general deal with live electricity and high voltages and therefore the installation of such products must be done by a CEC accredited installer
You must not install or use any products purchased on the [Enphase Store] in a manner inconsistent with the product documentation and/or specifications thereto, as this will invalidate your product warranty.
Technical Specifications
Length 212.00 mm
Width 175.00 mm
Height 30.00 mm
Weight 1,08 kg
IQ Series Microinverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty of up to 25 years.
Compatible with 60-cell / 120-half-cell and 72-cell / 144-half cell modules
Production monitoring compatibility with Envoy-S and Envoy-S Metered Q Cable™ system and accessories.
What’s in the box

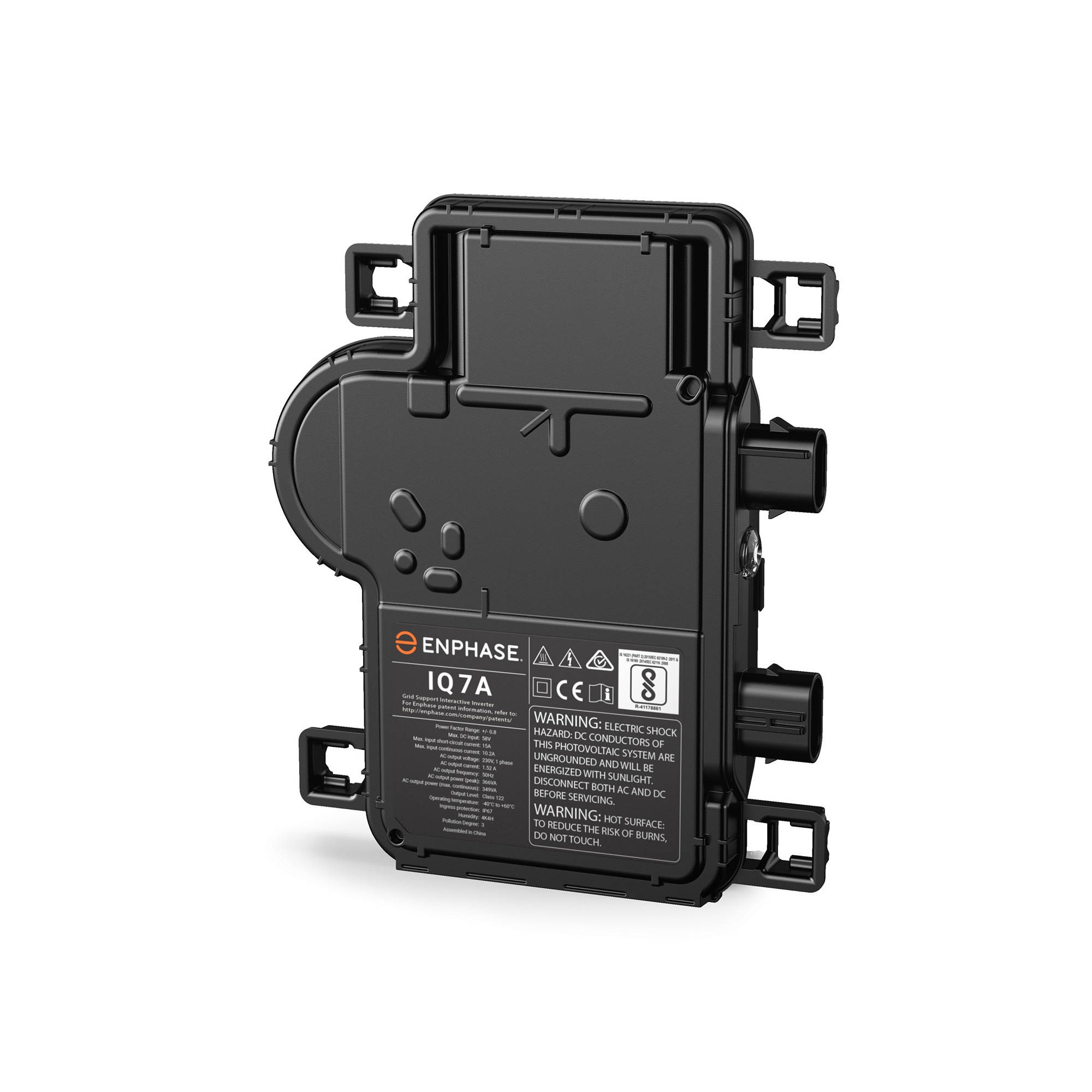

IQ7A Microinverter
Mounting bracket
Q-DCC-2 Plug-n-play MC4 adapter cable.
